RADIANO

design Jan Padrnos

A segmental bench without a backrest of simple design. Its arched version can be made into a circle, for instance around a grown tree, or it can form curves by variable connection of curved and straight parts. It is possible to select the version with inserted legs or the wall – mount option.

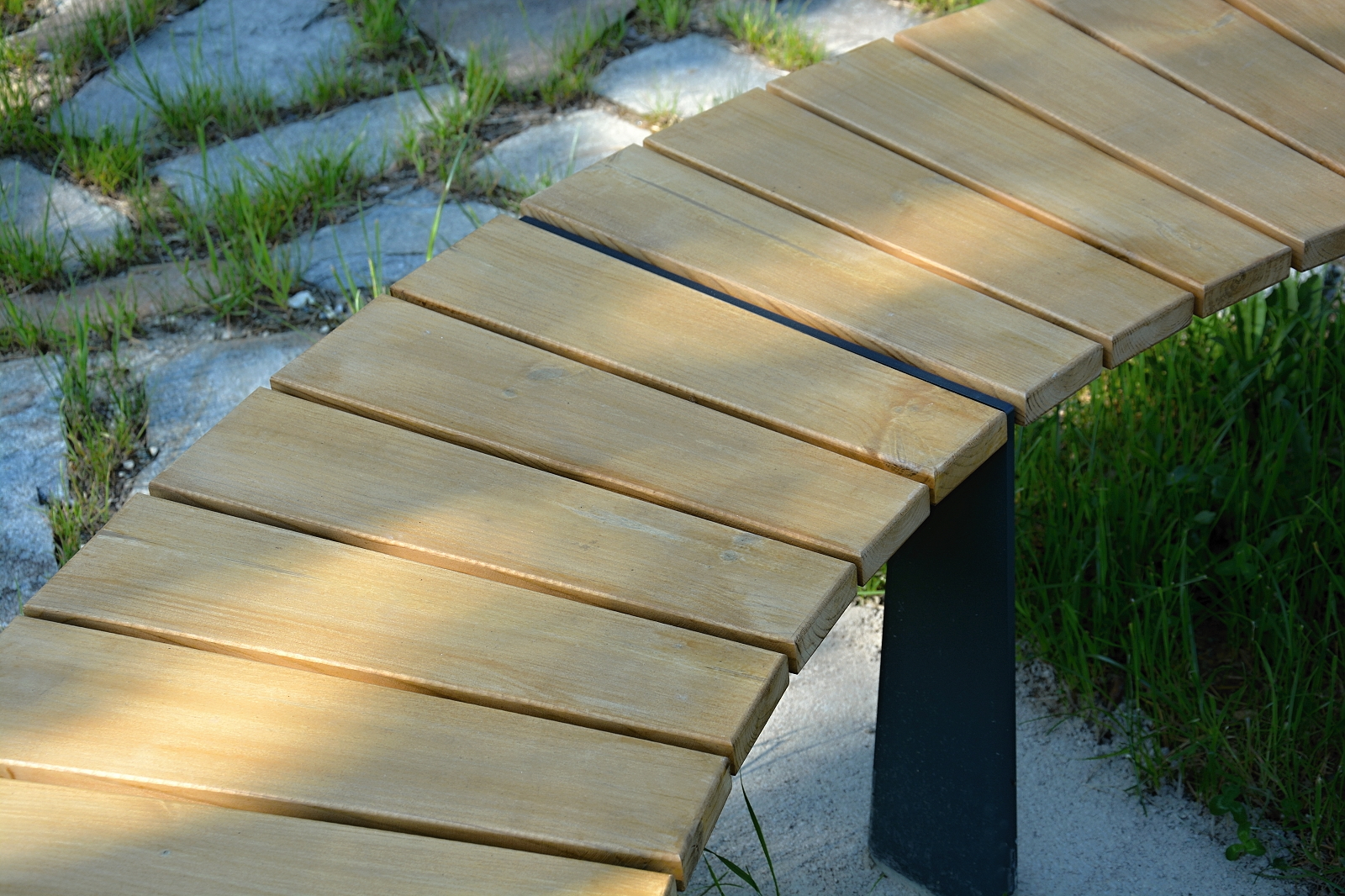

The supporting structure made of galvanized steel is treated with powder coating. A seat and backrest are consisted of solid wood lamellas attached to the supporting structure with stainless screws. There are four holes for anchoring to the base in each leg.

Design based on type

LRA11 1000

LRA11 1000

L×W×H: 440×435 mm, R 1000 mm / 27 kg

round bench / outer leg

LRA11 1500

LRA11 1500

L×W×H: 440×435 mm, R 1500 mm / 33 kg

round bench / outer leg

LRA11 2000

LRA11 2000

L×W×H: 440×435 mm, R 2000 mm / 41 kg

round bench / outer leg

LRA13

LRA13

L×W×H: 1800×440×435 mm / 39 kg

straight bench / foot

LRA12 1000

LRA12 1000

L×W×H: 440×435 mm, R 1000 / 27 kg

round bench / inner leg

LRA12 1500

LRA12 1500

L×W×H: 440×435 mm, R 1500 mm / 33 kg

round bench / inner leg

LRA12 2000

LRA12 2000

L×W×H: 440×435 mm, R 2000 mm / 41 kg

round bench / inner leg

LRA15

LRA15

L×W×H: 1792×440×66 mm / 18 kg

straight bench on the wall

LRA14 1000

LRA14 1000

L×W×H: 440×66 mm, R 1000 mm / 14 kg

round bench on the wall

LRA14 1500

LRA14 1500

L×W×H: 440×66 mm, R 1500 mm / 17 kg

round bench on the wall

LRA14 2000

LRA14 2000

L×W×H: 440×66 mm, R 2000 mm / 21 kg

round bench on the wall

LRAXX

LRAXX

L×W×H: 460 x 340 mm

backrest

Metal parts options
Download PDF sampler

RAL 7016

RAL 9005

RAL 9006

RAL 9007

RAL 9003

RAL 3003

RAL 6021

Shade of Corten

Wooden parts options
Download PDF sampler

Oak

Spruce

Tropical w.

Pine TW

Dimensions L×W×H
440×435 mm, R 1000 mm / 27 kg 440×435 mm, R 1500 mm / 33 kg 440×435 mm, R 2000 mm / 41 kg 1800×440×435 mm / 39 kg 440×435 mm, R 1000 / 27 kg 440×435 mm, R 1500 mm / 33 kg 440×435 mm, R 2000 mm / 41 kg 1792×440×66 mm / 18 kg 440×66 mm, R 1000 mm / 14 kg 440×66 mm, R 1500 mm / 17 kg 440×66 mm, R 2000 mm / 21 kg 460 x 340 mm

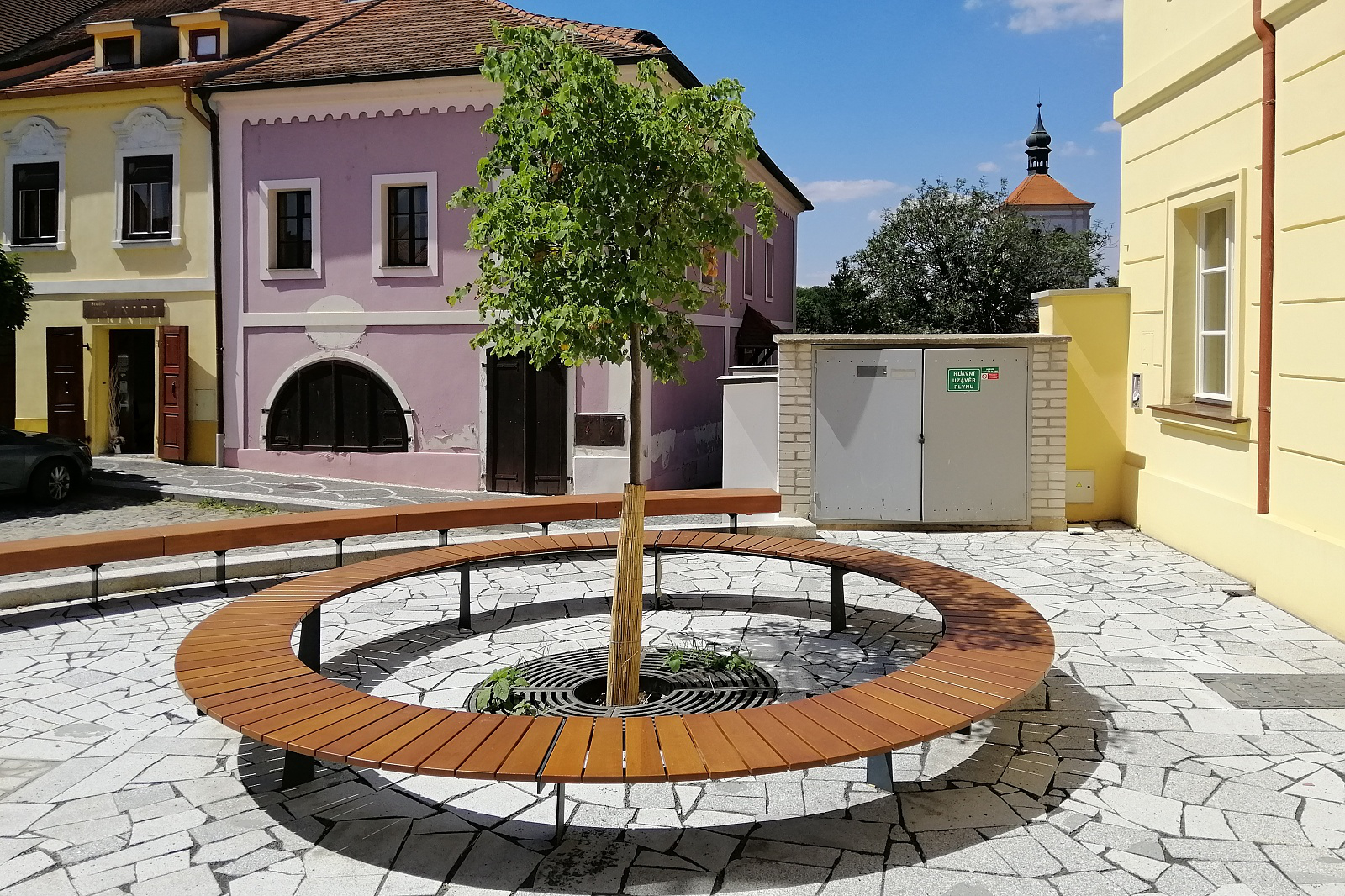

RADIANO benches in Kralupy nad Vltavou.
1

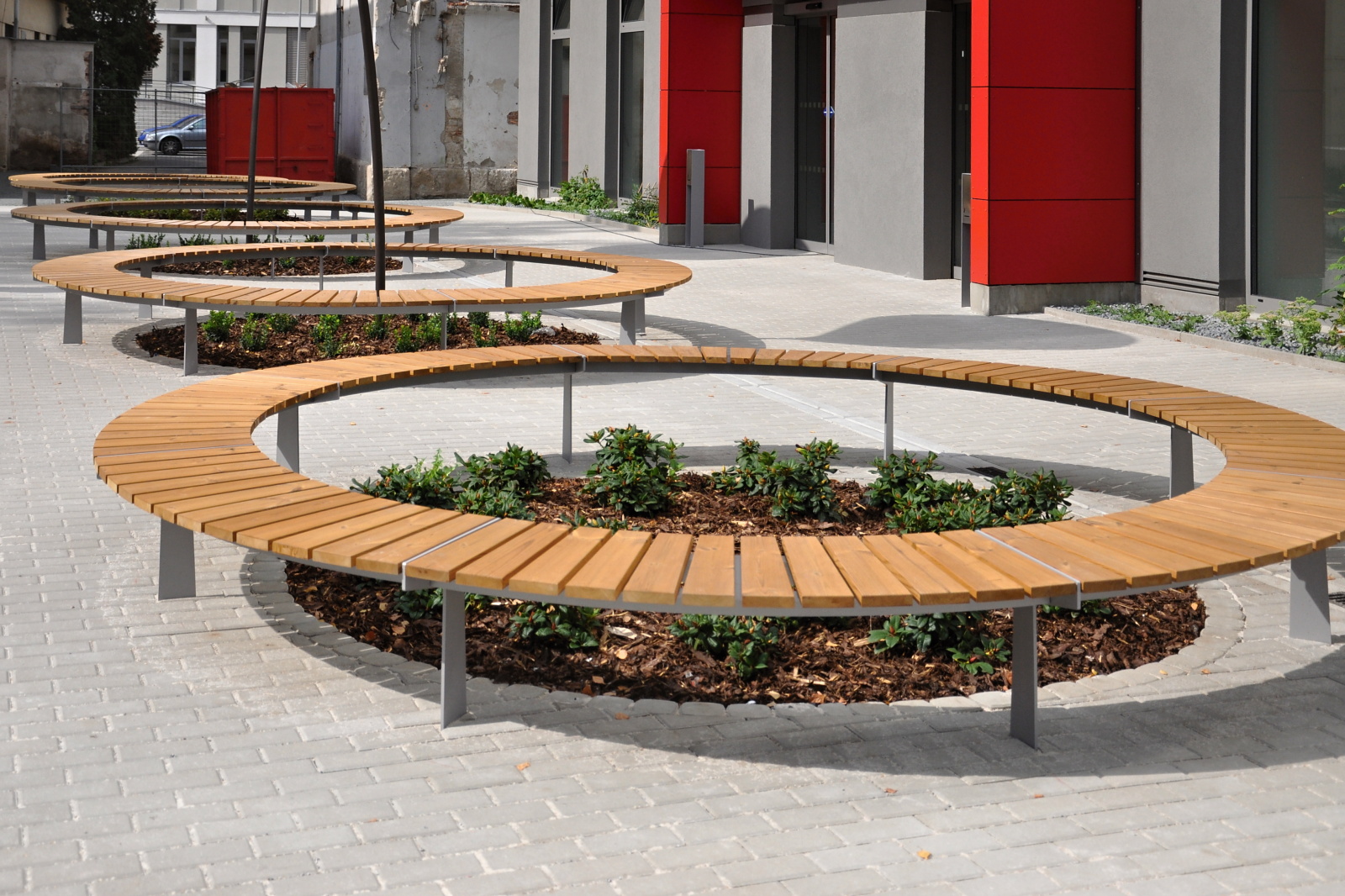

Assembly variability

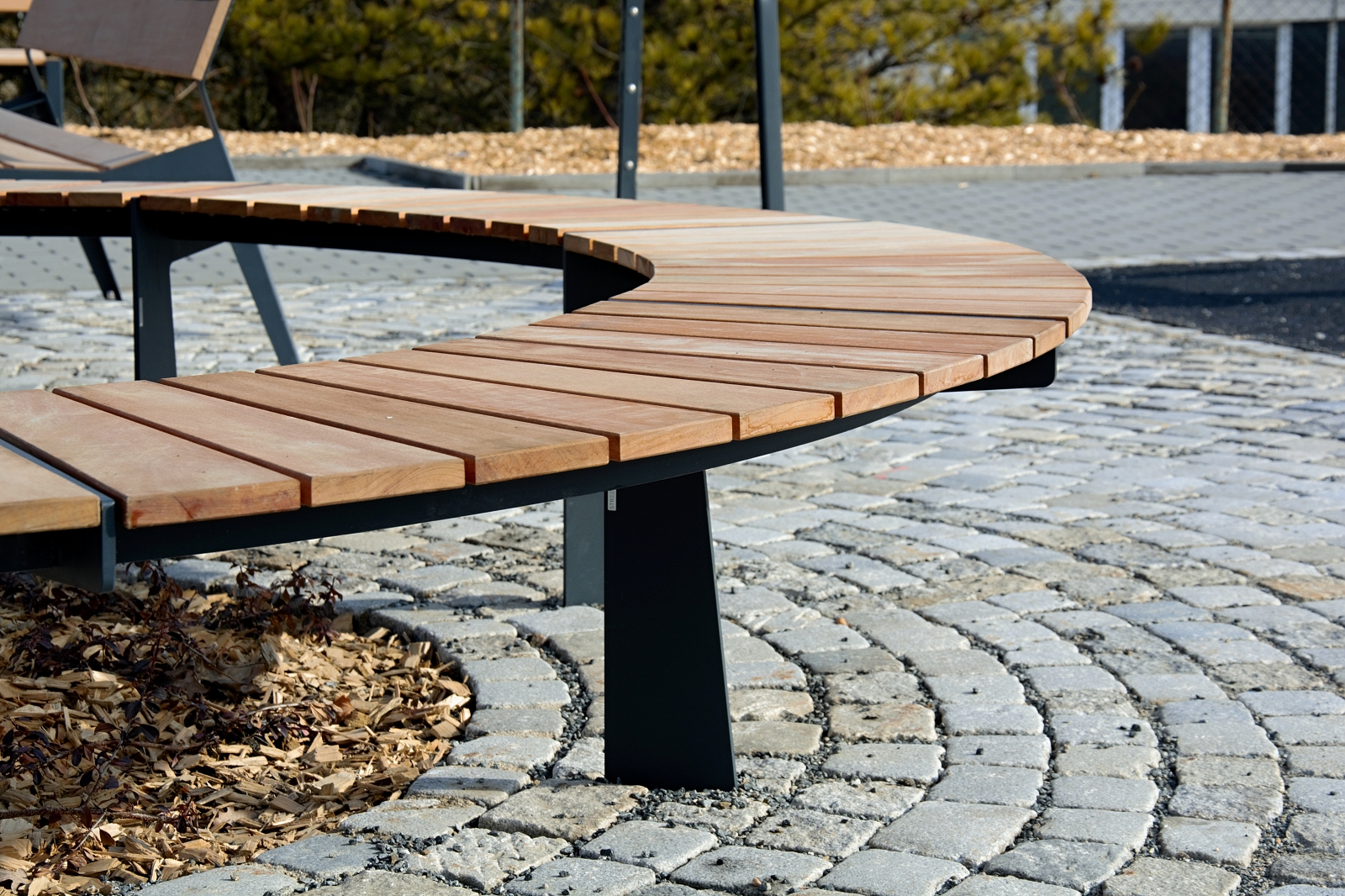

The whole range of segments of different radius offers the variability in assembling in both the circle (the most common around a tree) and the unfinished curves.
2
Radius upon your request

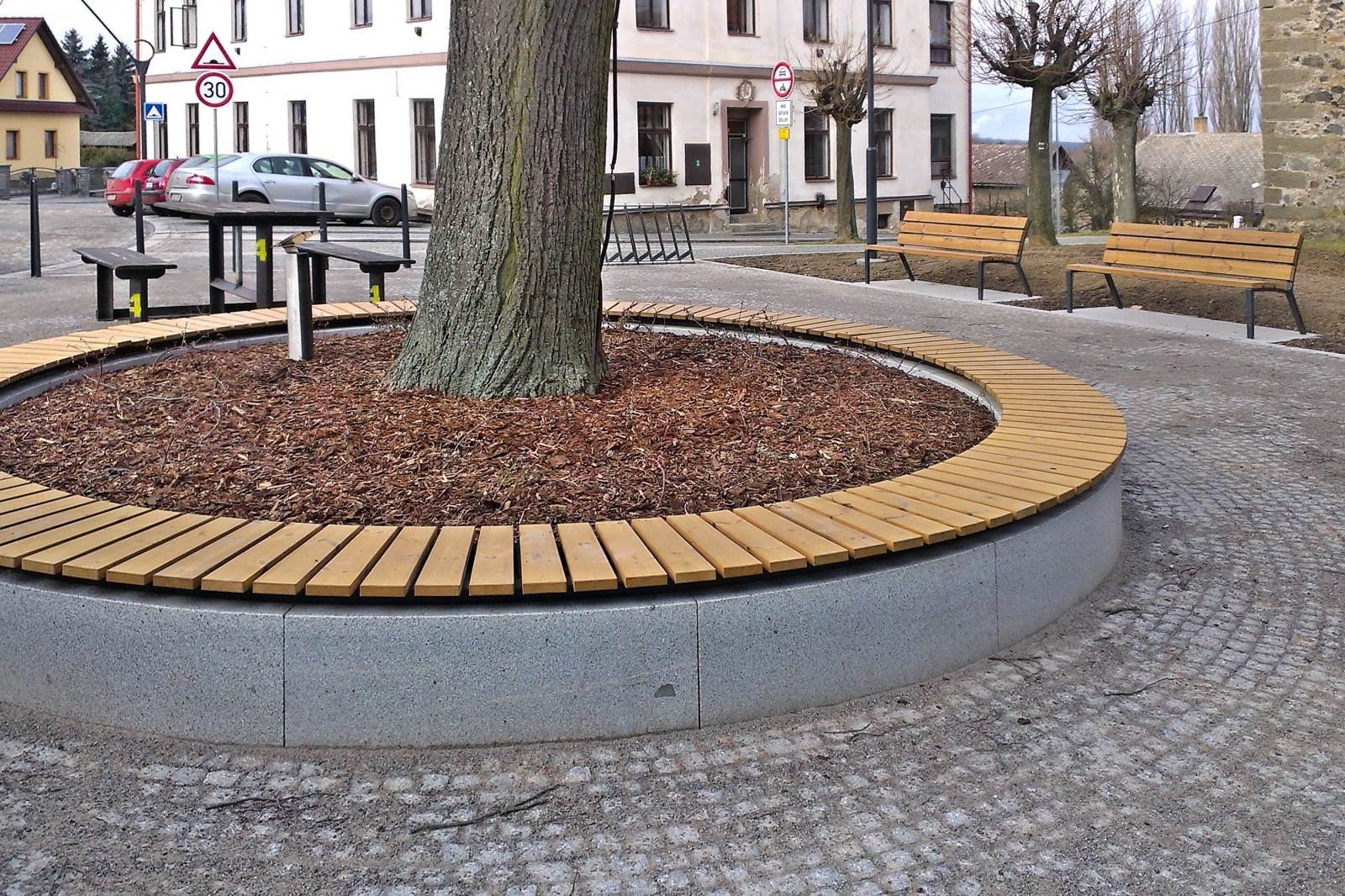

It is possible to select the design with sideboards (legs) or just with seats on a concrete wall. Non-standard radius and angle upon your request.
3

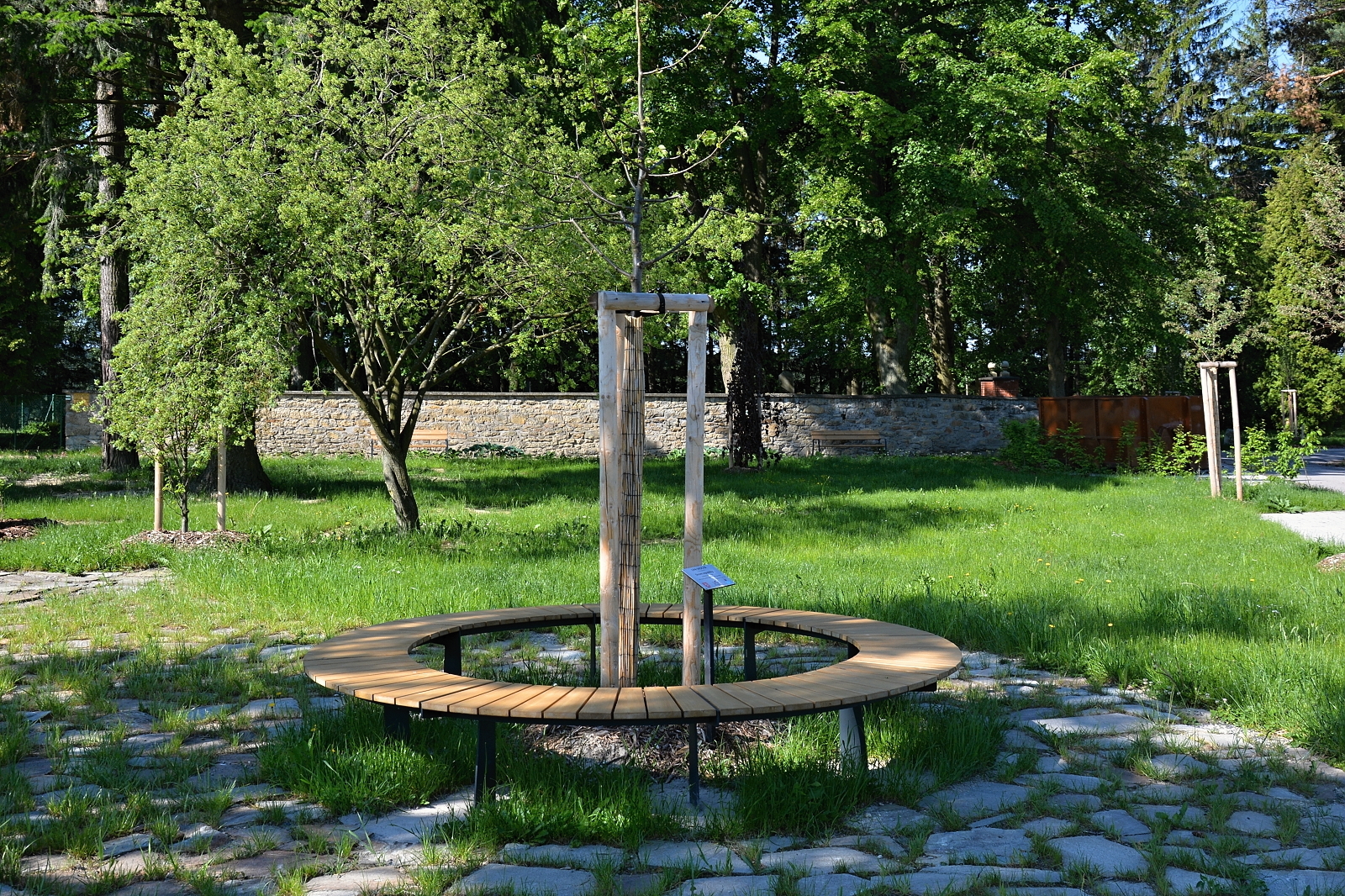

Tree protection

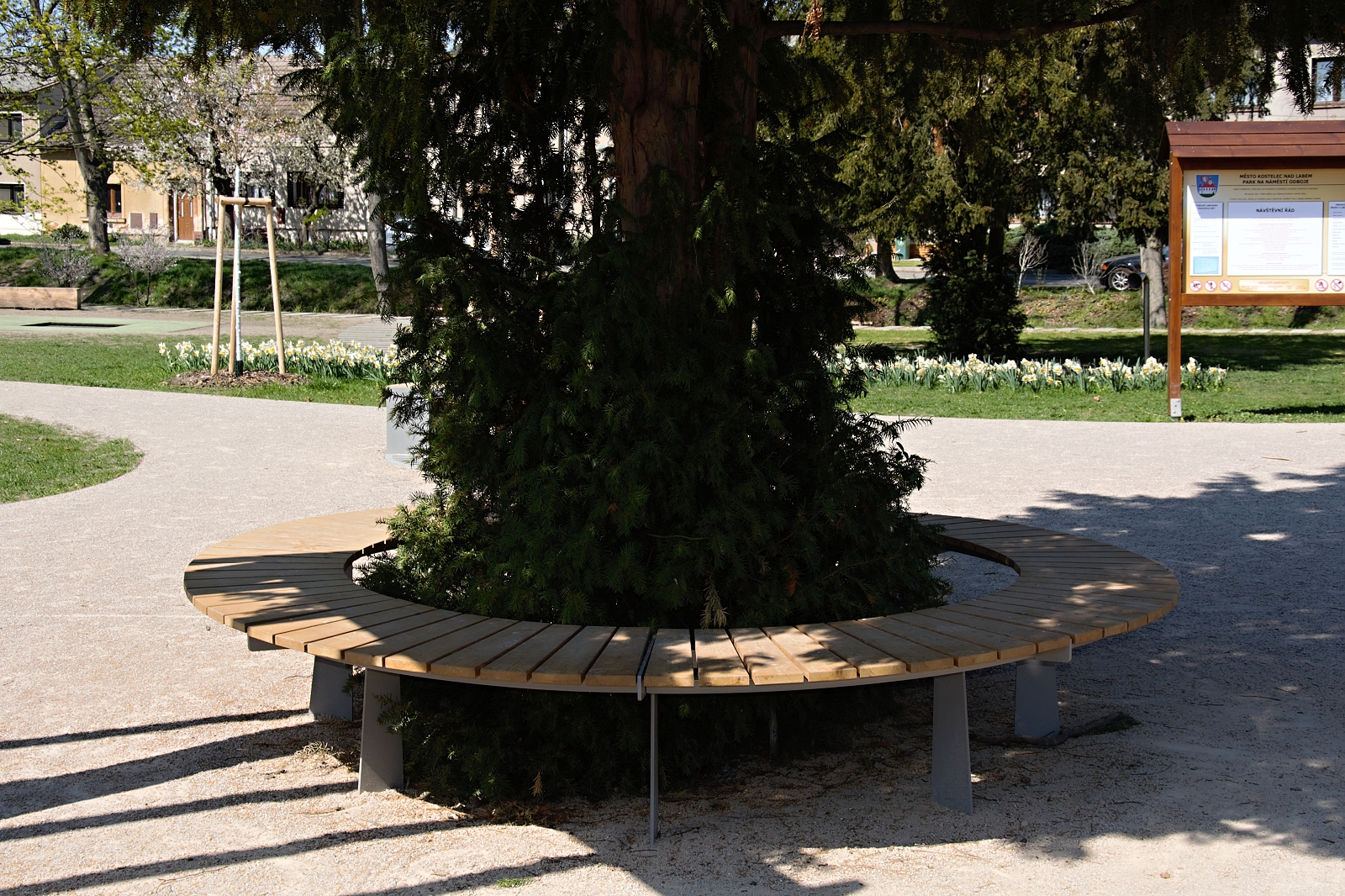

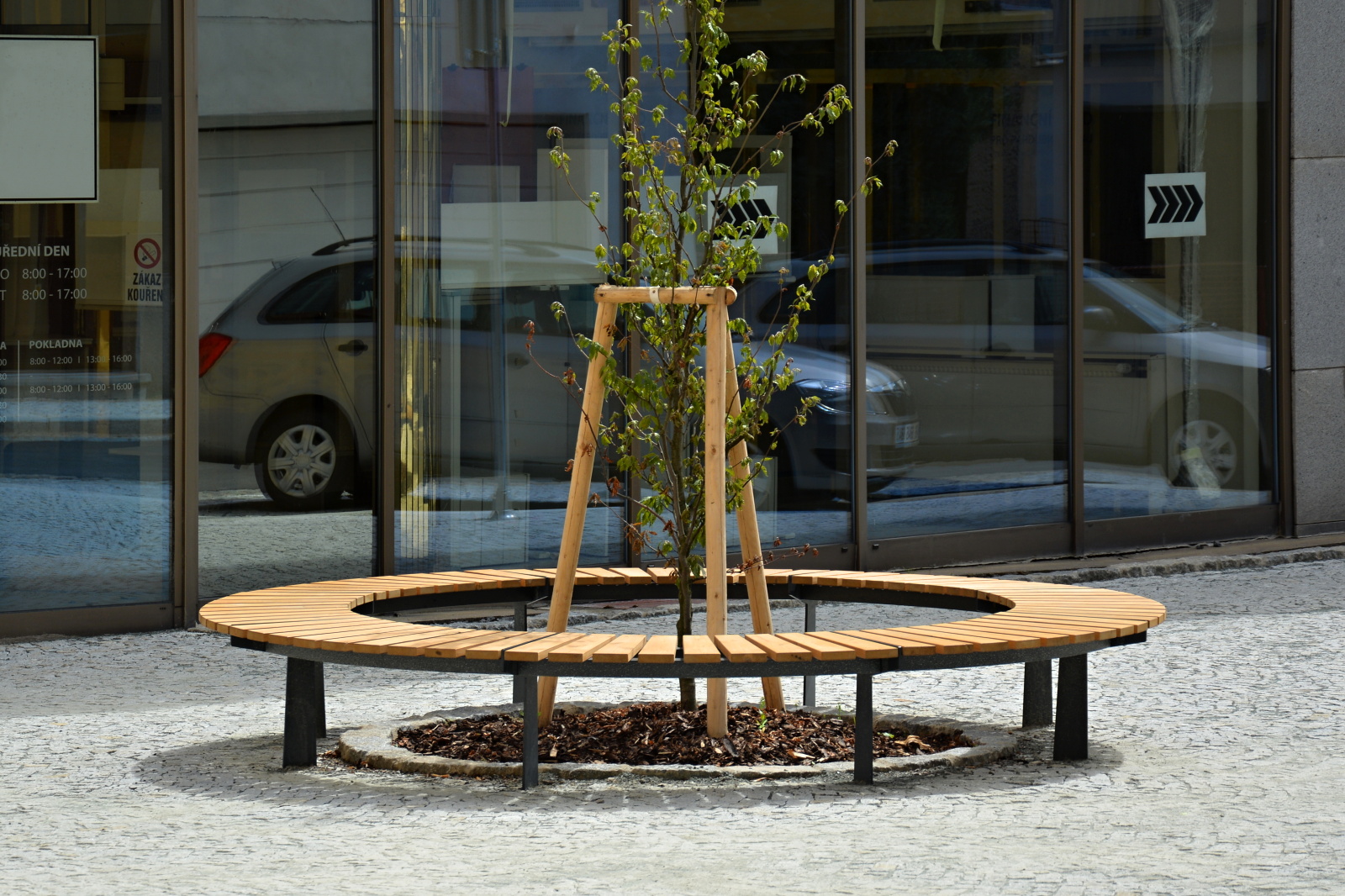

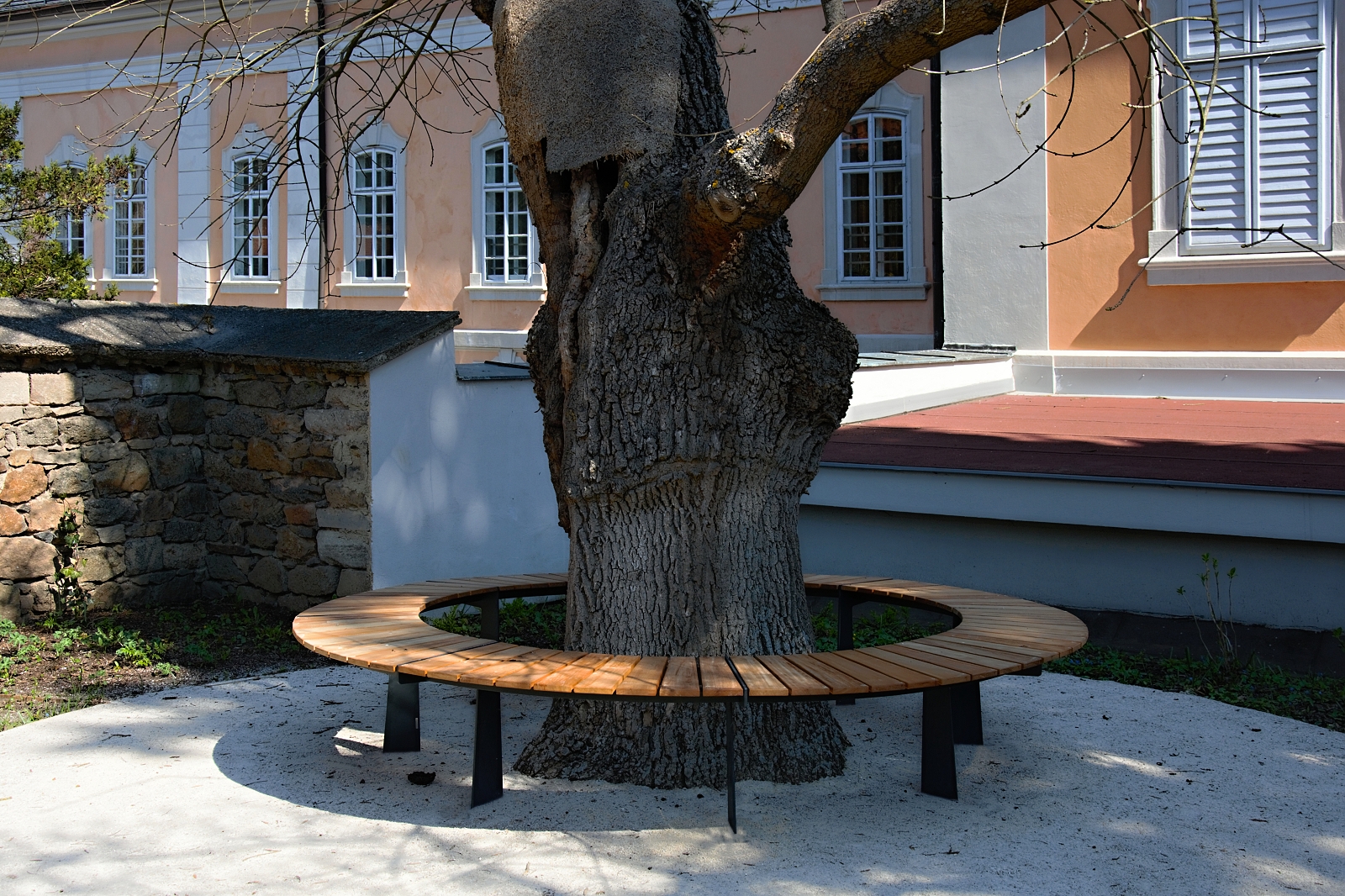

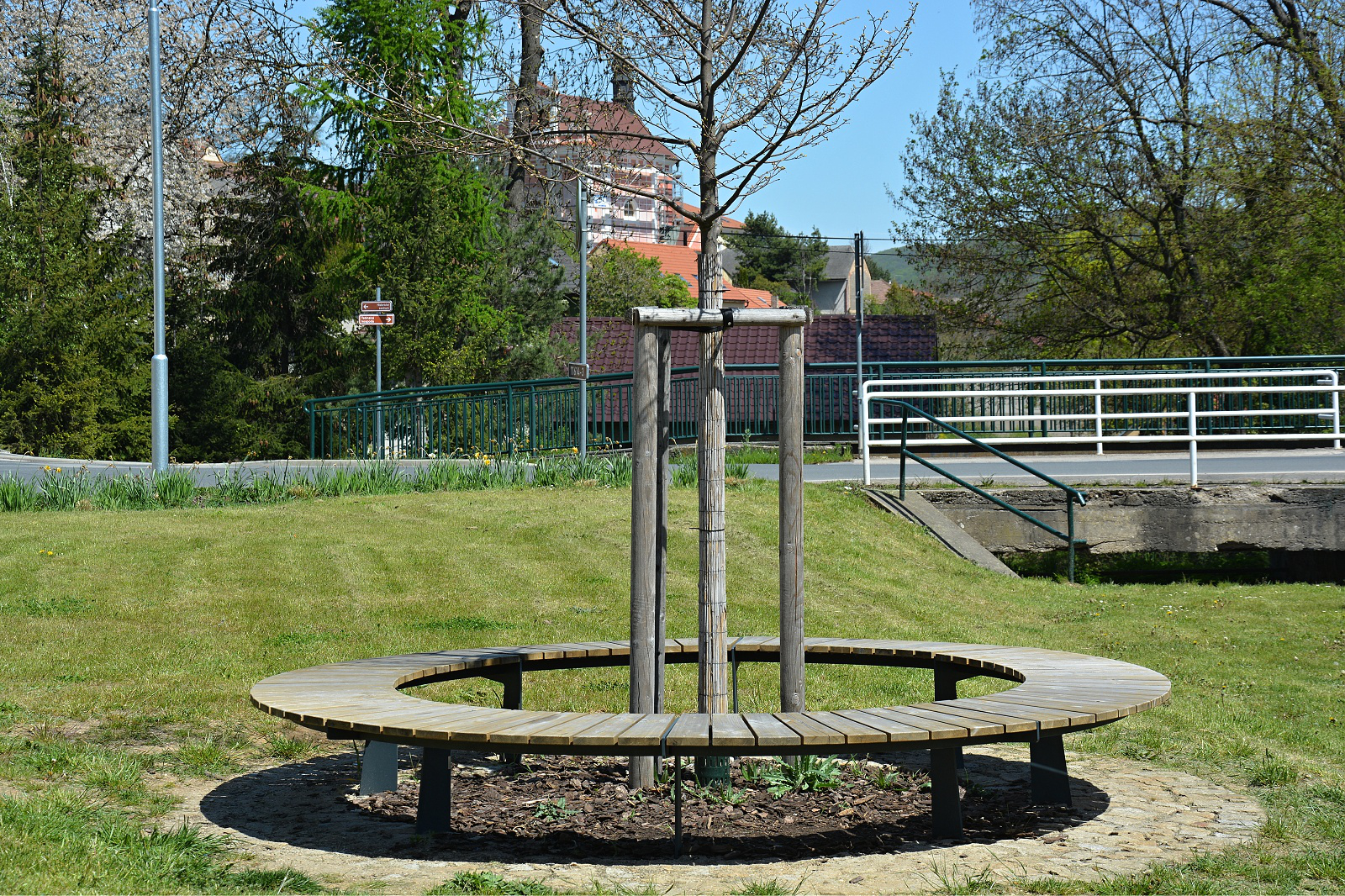

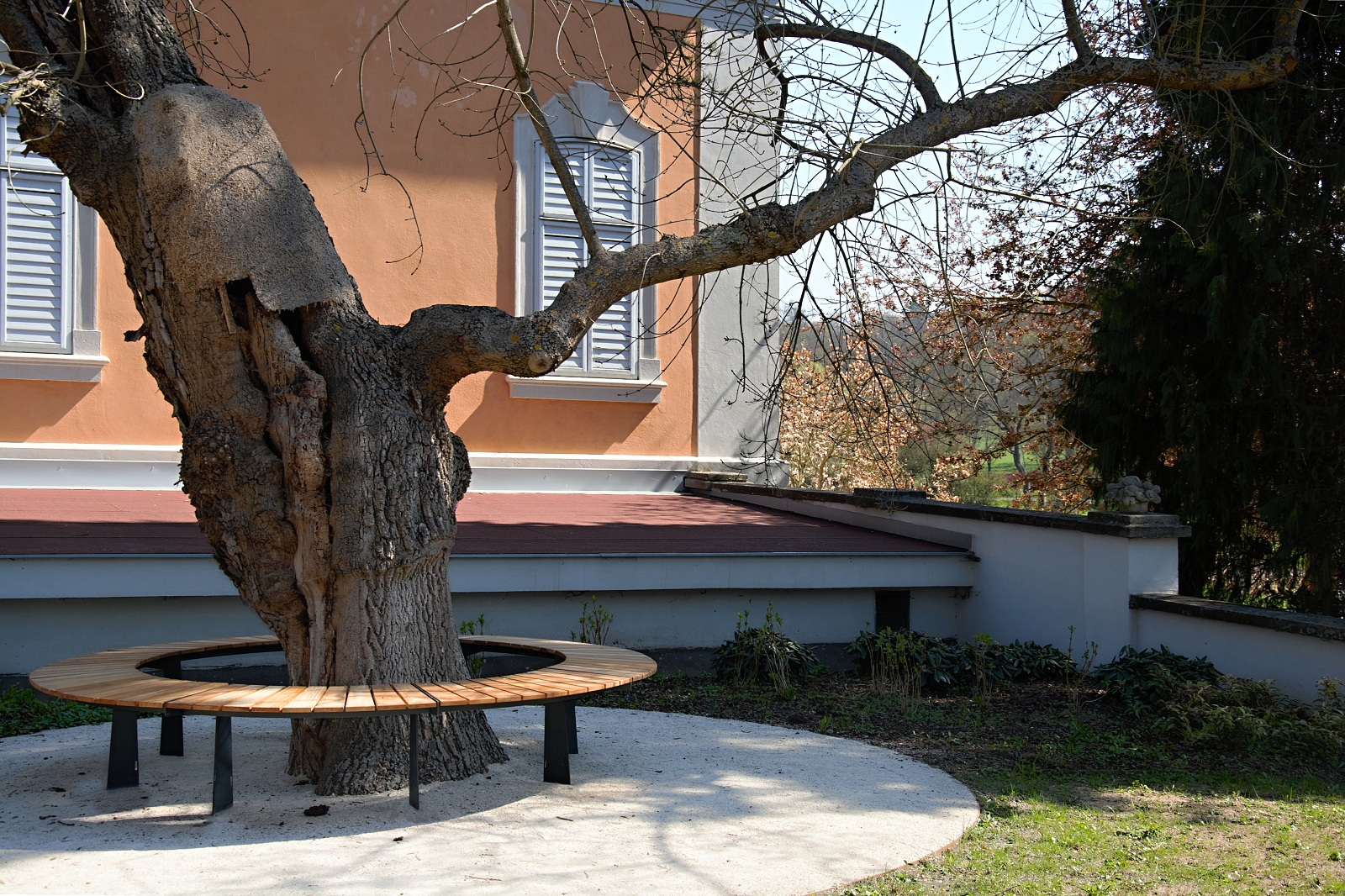

By placing a circular set of benches around a tree, it is not necessary to provide a non-tiled area inside the circle with a tree grid.
