INOA

design Jan Padrnos

A series of light benches available in many versions providing comfortable seating. At first glance, it has a subtle but sufficiently resistant bench structure that provides the possibility to select the version with or without armrests, a backrest, or the version including the wooden lamellas or boards. Round versions with a backrest are also available as a practical accessory to liner versions. This accessory is suitable, especially where it is necessary to place the bench around a tree for instance.
Its galvanized steel supporting structure is treated with powder coating. A seat and backrest are made from solid wooden lamellas attached to the supporting structure with stainless steel screws. There are four legs with holes for anchoring to the base.

LIN30 60 - Files to download
LIN30 60 (jpg) LIN30 60 (jpg)
Design based on type

LIN1

LIN1

L×W×H: 1800×681×779 mm / 52 kg

bench with backrest / without armrests / laths

LIN10

LIN10

L×W×H: 1800×592×456 mm / 45 kg

bench with wall support / without armrests / laths

LIN3

LIN3

L×W×H: 1800×681×779 mm / 56 kg

bench with backrest / with amrests / laths

LIN30

LIN30

L×W×H: 1800×592×456 mm / 49 kg

bench with backrest on the wall / with amrests / laths

LIN1 60

LIN1 60

L×W×H: 600×681×779 mm / 27 kg

bench with backrest / without armrests / laths

LIN10 60

LIN10 60

L×W×H: 600×592×456 mm / 20 kg

bench with wall support / without armrests / laths

LIN3 60

LIN3 60

L×W×H: 600×681×779 mm / 31 kg

bench with backrest / with armrests / laths

LIN30 60

LIN30 60

L×W×H: 600×592×456 mm / 25 kg

bench with backrest on the wall / with armrests / laths

LIN4

LIN4

L×W×H: 1800×681×779 mm / 57 kg

bench with backrest / without armrests / boards

LIN40

LIN40

L×W×H: 1800×592×455 mm / 22 kg

bench with backrest on the wall / with amrests / boards

LIN6

LIN6

L×W×H: 1800×681×779 mm / 62 kg

bench with armrest / with armrests / boards

LIN60

LIN60

L×W×H: 1800×592×456 mm / 55 kg

bench with backrest on the wall / with amrests / boards

LIN4 60

LIN4 60

L×W×H: 600×681×779 mm / 29 kg

bench with backrest / without armrests / boards

LIN40 60

LIN40 60

L×W×H: 600×592×455 mm / 22 kg

bench with backrest on the wall / with armrests / boards

LIN6 60

LIN6 60

L×W×H: 600×681×779 mm / 33 kg

bench with armrest / with armrests / boards

LIN60 60

LIN60 60

L×W×H: 600×592×456 mm / 27 kg

bench with backrest on the wall / with armrests / boards

LIN2

LIN2

L×W×H: 1800×484×440 mm / 32 kg

bench without backrest / without armrests / laths

LIN20

LIN20

L×W×H: 1800×436×78 mm / 26 kg

bench without backrest on the wall / without armrests / laths

LIN5

LIN5

L×W×H: 1800×681×779 mm / 34 kg

bench without backrest / without armrests / boards

LIN50

LIN50

L×W×H: 1800×395×78 mm / 27 kg

bench without backrest on the wall / without armrests / boards

LIN2 60

LIN2 60

L×W×H: 600×484×440 mm / 19 kg

bench without backrest / without armrests / laths

LIN20 60

LIN20 60

L×W×H: 600×436×78 mm / 13 kg

bench without backrest on the wall / without armrests / laths

LIN5 60

LIN5 60

L×W×H: 600×442×440 mm / 18 kg

bench without backrest / without armrests / boards

LIN50 60

LIN50 60

L×W×H: 600×395×78 mm / 13 kg

bench without backrest / without armrests / boards

LINR

LINR

L×W×H: Outer diameter R=1355 mm, v. 793 mm / 50-63 kg (1 segment)

arched bench with backrest / without armrests / 90 °

Metal parts options
Download PDF sampler

RAL 9006

RAL 9007

RAL 7016

RAL 9005

RAL 9003

RAL 1001

RAL 7006

Shade of Corten

RAL 1021

RAL 1033

RAL 2008

RAL 3003

RAL 5024

RAL 6034

RAL 6021

RAL 6010

Stainless steel

Wooden parts options
Download PDF sampler

Oak

Pine TW

Tropical wood

Acacia

Dimensions L×W×H
1800×681×779 mm / 52 kg 1800×592×456 mm / 45 kg 1800×681×779 mm / 56 kg 1800×592×456 mm / 49 kg 600×681×779 mm / 27 kg 600×592×456 mm / 20 kg 600×681×779 mm / 31 kg 600×592×456 mm / 25 kg 1800×681×779 mm / 57 kg 1800×592×455 mm / 22 kg 1800×681×779 mm / 62 kg 1800×592×456 mm / 55 kg 600×681×779 mm / 29 kg 600×592×455 mm / 22 kg 600×681×779 mm / 33 kg 600×592×456 mm / 27 kg 1800×484×440 mm / 32 kg 1800×436×78 mm / 26 kg 1800×681×779 mm / 34 kg 1800×395×78 mm / 27 kg 600×484×440 mm / 19 kg 600×436×78 mm / 13 kg 600×442×440 mm / 18 kg 600×395×78 mm / 13 kg Outer diameter R=1355 mm, v. 793 mm / 50-63 kg (1 segment)
possibility of length modification

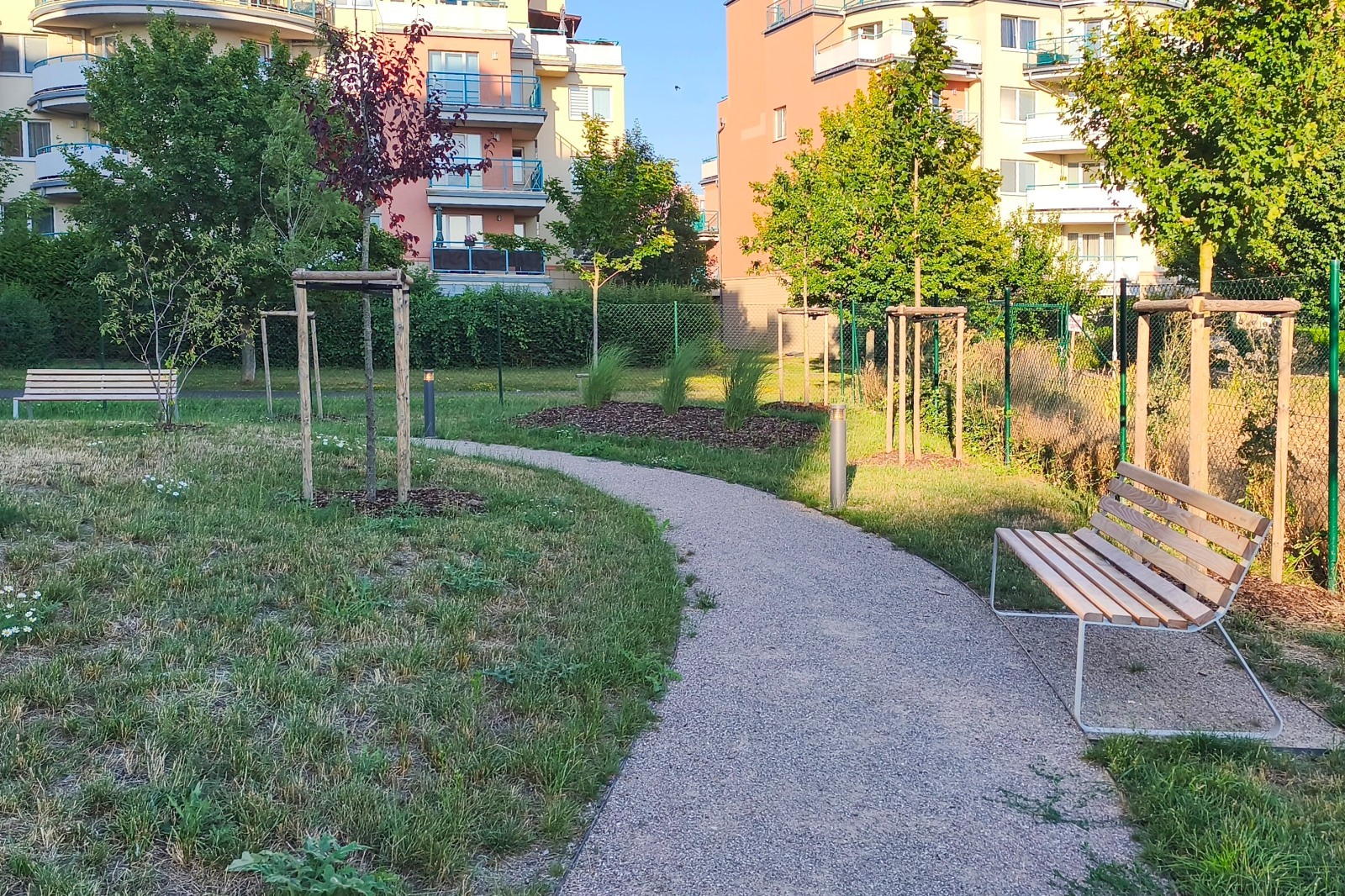

INOA benches in the park hidden in the inner block in the city center in Brno.
1
Wide product variability
The popular and affordable series of benches with a wide range of designs. It is possible to select the versions with both lamellas and boards, as well as the versions with or without armrests.
2
Round design with backrest
The only series of benches in our collection that is also available in its round design with a backrest in standard version. It is suitable for using around a grown tree.
3
Above - standard lengths are possible
If required, it is possible to modify the length of benches. It is also suitable for making long benches when using more side rails.
