Information boards

K.D.K.

design Jan Padrnos

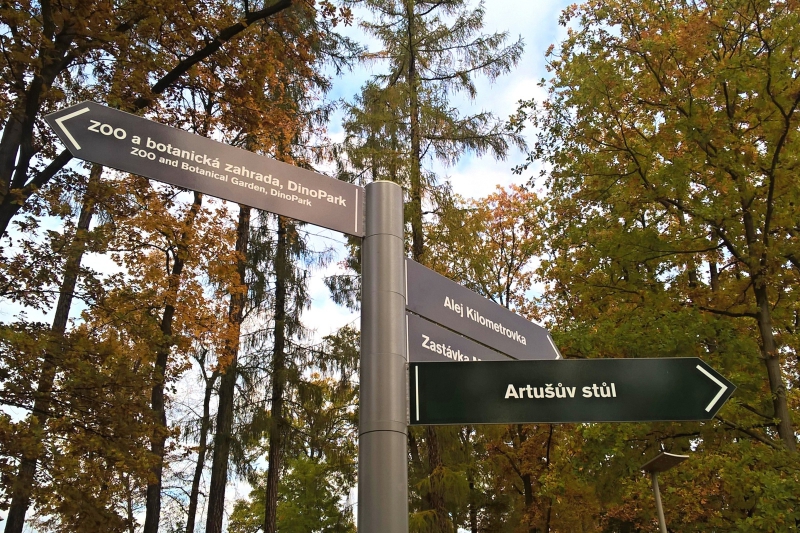

A subtle arrow orientation system called K.D.K. is also suitable for historical centers, pedestrian areas and spa towns pointing to local destinations. It is possible to select from two types of arrows, and two construction versions – up to six and ten arrows. The easy pointing of each arrow is a matter of course.
The all-aluminium structure is treated with powder coating. At the bottom of the pillar, there is a flange with holes for hidden anchoring to the base below the ground level.



KDK6K - Files to download
KDK6K 2D drawing (jpg) KDK6K 3D perspective (jpg)
KDK10K - Files to download
KDK10K 2D drawing (jpg) KDK10K 3D perspective (jpg)
KDK6R - Files to download
KDK6R 2D drawing (jpg) KDK6R 3D perspective (jpg)
KDK10R - Files to download
KDK10R 2D drawing (jpg) KDK10R 3D perspective (jpg)
Design based on type

KDK6K

KDK6K

L×W×H: sloupek ø 100 mm, šipka 700×140 mm

orientation system / 6x classic arrow

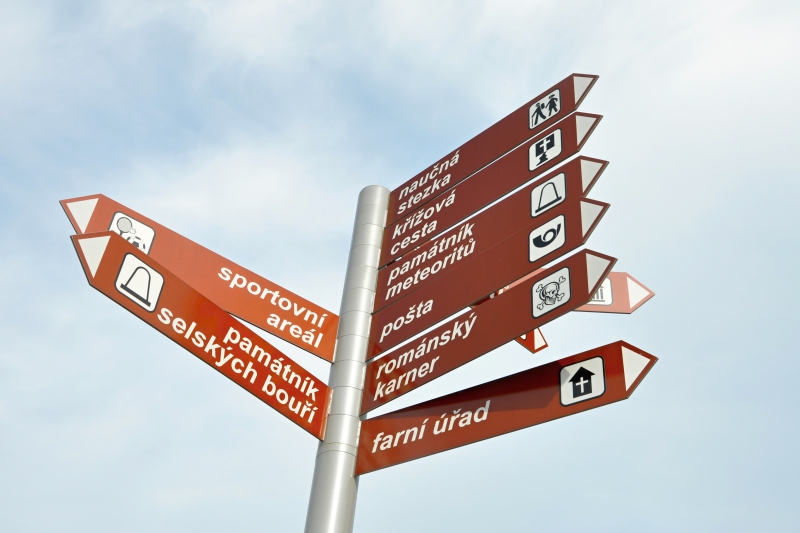

KDK10K

KDK10K

L×W×H: sloupek ø 100 mm, šipka 700×140 mm

orientation system / 10x classic arrow

KDK6R

KDK6R

L×W×H: sloupek ø 100 mm, šipka 700×140 mm

orientation system / 6x straight arrow

KDK10R

KDK10R

L×W×H: sloupek ø 100 mm, šipka 700×140 mm

orientation system / 10x straight arrow

Metal parts options
Download PDF sampler

RAL 7016

RAL 9005

RAL 9006

RAL 9007

RAL 9003

RAL 3003

RAL 6021

Shade of Corten

Dimensions L×W×H
sloupek ø 100 mm, šipka 700×140 mm sloupek ø 100 mm, šipka 700×140 mm sloupek ø 100 mm, šipka 700×140 mm sloupek ø 100 mm, šipka 700×140 mm
Demand
You can fixed up to 10 signs to the K.D.K. orientation system.
1
Easy installation
The lightweight aluminum construction simplifies installation.
2
Minimalist design
The minimalist design prioritizes function over pomp and thus expands placement options.
3
Customization
Possibility to customize fonts, placement of bilingual texts, pictograms, etc.
